Charge Pipes

F=MA

Active Member
Messages
725
Reactions
453
Points
182
Location
Wichita, KS, USA
#1
If everybody goes with an AFE cai then my next question could be are the OEM charge pipes large enough or do they also need to be upsized ? I assume that's what Fenfab is doing?


zdubyadubya

Active Member
Messages
734
Reactions
530
Points
232
Location
Ellicott City, MD, USA
#2
correct, but the cold side charge pipes do not come with the fenfab intake kit. they are extra. i do know some guys who have changed out the charge pipe for an aftermarket unit or custom fabbed unit without doing an intake. it remains to be seen i think if the aftermarket charge pipes will fit with the AFE unit. i personally did the charge pipe because it seemed so strange to have all this extra intake volume and a huge intercooler all run to a tiny crimped bend before going to the silicone throttle body intake tube. may not do much, but it helped peace of mind.


Messages
131
Reactions
84
Points
27
Location
Charlotte, NC, USA
#3
correct, but the cold side charge pipes do not come with the fenfab intake kit. they are extra. i do know some guys who have changed out the charge pipe for an aftermarket unit or custom fabbed unit without doing an intake. it remains to be seen i think if the aftermarket charge pipes will fit with the AFE unit. i personally did the charge pipe because it seemed so strange to have all this extra intake volume and a huge intercooler all run to a tiny crimped bend before going to the silicone throttle body intake tube. may not do much, but it helped peace of mind.
Hey zdubyadubya hope you are well. Came across this post today while researching charge pipes. Have a WIC and will be tuning soon. Wondered what your impression of your cold side charge pipe is now that you have some time on it? I have the same concern you did about choking down the air flow post IC. Thanks.


UNBROKEN

2000 Post Club
Messages
2,626
Reactions
2,942
Points
352
Location
Houston, TX, USA
#4
Several people have installed the aFe intake with the FenFab charge pipe. It fits. My AFe is sitting at my office…I keep saying I’m gonna install it but then I don’t. lol


TMac

Active Member
Messages
952
Reactions
633
Points
232
Location
Knoxville, TN
#5
We're talking about the cold side (intercooler out) to the stock throttle body silicone adapter right? I haven't taken mine off, but any estimate of the "tiny crimped bend" cross-sectional area?


UNBROKEN

2000 Post Club
Messages
2,626
Reactions
2,942
Points
352
Location
Houston, TX, USA
#6
We're talking about the cold side (intercooler out) to the stock throttle body silicone adapter right? I haven't taken mine off, but any estimate of the "tiny crimped bend" cross-sectional area?
Yea…that one. I actually cut mine in half and measured the cross section where it’s flattened then measured the FenFab pipe and oem pipe inlets.
This is in square inches.
OEM inlet area 3.98
FenFab inlet area 4.43
OEM pipe flattened area 3.41

Both neck down at the TB connection…I don’t think I measured that spot. 0CC8B561-02CA-4810-A2CD-0BF092F899D4.jpeg


TMac

Active Member
Messages
952
Reactions
633
Points
232
Location
Knoxville, TN
#7
Calculating 3.41 sq in to sq mm equals about a 52mm internal diameter in circular diameter which would be around 430 cfm. If anyone read my throttle body thread:

https://www.explorerst.org/threads/throttle-bodies-cfm-and-mass-airflow.3163/post-39192

Enough for our engines, but marginal, especially since the flattened part is transverse to the curve. I'd have to say the FenFab charge pipe might actually be a nice little upgrade! One caveat- if the necked down portion leading to the throttle body is less than a 52mm ID, it's probably not worth it.


Cruising68

Active Member
Messages
752
Reactions
411
Points
182
Location
Chicago, IL, USA
#8
Several people have installed the aFe intake with the FenFab charge pipe. It fits. My AFe is sitting at my office…I keep saying I’m gonna install it but then I don’t. lol
What not enough on your plate lol


zdubyadubya

Active Member
Messages
734
Reactions
530
Points
232
Location
Ellicott City, MD, USA
#9
Hey zdubyadubya hope you are well. Came across this post today while researching charge pipes. Have a WIC and will be tuning soon. Wondered what your impression of your cold side charge pipe is now that you have some time on it? I have the same concern you did about choking down the air flow post IC. Thanks.

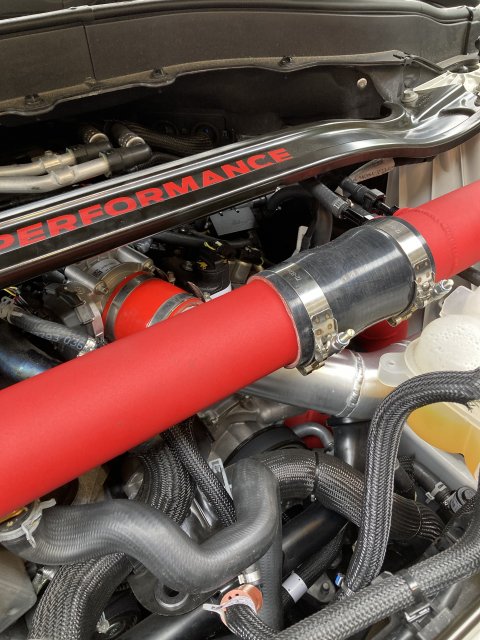

As alluded to by both @TMac and @UNBROKEN , I did some measuring and did some refinements to my tune post charge pipe install--since I made my own, I definitely think the upgrade was worth it. I tried to use even smaller radii than FenFab and used bigger diameter tubing as well. knowing what little i do about fluid dynamics there was no way the stock pipe was conducive to airflow.

IMG_2374.JPG IMG_2375.JPG


Cruising68

Active Member
Messages
752
Reactions
411
Points
182
Location
Chicago, IL, USA
#10
As alluded to by both @TMac and @UNBROKEN , I did some measuring and did some refinements to my tune post charge pipe install--since I made my own, I definitely think the upgrade was worth it. I tried to use even smaller radii than FenFab and used bigger diameter tubing as well. knowing what little i do about fluid dynamics there was no way the stock pipe was conducive to airflow.

View attachment 11331
View attachment 11332 View attachment 11333
Looks awesome with the red. So you welded up your own you say. I'm afraid my welding skills are good enough to get the job done but not to be proud of. Did you buy a kit or just pieces?


TMac

Active Member
Messages
952
Reactions
633
Points
232
Location
Knoxville, TN
#11
As alluded to by both @TMac and @UNBROKEN , I did some measuring and did some refinements to my tune post charge pipe install--since I made my own, I definitely think the upgrade was worth it. I tried to use even smaller radii than FenFab and used bigger diameter tubing as well. knowing what little i do about fluid dynamics there was no way the stock pipe was conducive to airflow.

View attachment 11331
View attachment 11332 View attachment 11333

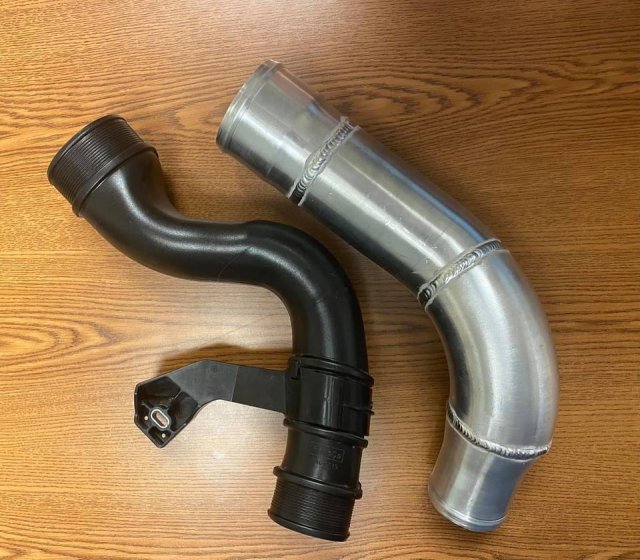

I remember your post about building your own charge pipe. Any chance you remember the ID of intercooler output? What size piping did you use? Actually, now that I see both the stock and the FenFab piece, I think yours is nicer. Seems to have the same diameter, throughout, which is ideal.


Messages
131
Reactions
84
Points
27
Location
Charlotte, NC, USA
#12
As alluded to by both @TMac and @UNBROKEN , I did some measuring and did some refinements to my tune post charge pipe install--since I made my own, I definitely think the upgrade was worth it. I tried to use even smaller radii than FenFab and used bigger diameter tubing as well. knowing what little i do about fluid dynamics there was no way the stock pipe was conducive to airflow.

View attachment 11331
View attachment 11332 View attachment 11333
Very nice, thank you.


zdubyadubya

Active Member
Messages
734
Reactions
530
Points
232
Location
Ellicott City, MD, USA
#13
Looks awesome with the red. So you welded up your own you say. I'm afraid my welding skills are good enough to get the job done but not to be proud of. Did you buy a kit or just pieces?
Yup. Side by side with the FenFab unit is obvious who is the professional welder and who isn't but I'm still pretty proud of it. No kit, just pieces of 2.75" 16Ga aluminum tubing.

I remember your post about building your own charge pipe. Any chance you remember the ID of intercooler output? What size piping did you use? Actually, now that I see both the stock and the FenFab piece, I think yours is nicer. Seems to have the same diameter, throughout, which is ideal.
I didn't look, but my calipers read an OD of ~ 2.75" (and the same piece of silicone fits just as snugly on my tubing as the intercooler) --assuming 16Ga or 14Ga wall thickness should give you the numbers you are after. My piping was 16Ga, 2.75". Thanks for the compliment! I didn't want to use the existing plastic flex pipe--I knew I wanted something that went all the way up to the throttle body so I knew I had to do it myself.

Very nice, thank you.
Thanks! No problem.


Messages
117
Reactions
53
Points
27
Location
30122 Woodward Ave
#14
Has anyone done a before/after dyno or draggy in regards to the FenFab charge pipe mod? Curious if it would add power or just longevity over the plastic one.


Messages
61
Reactions
21
Points
7
Location
Detroit, MI, USA
#15
Has anyone done a before/after dyno or draggy in regards to the FenFab charge pipe mod? Curious if it would add power or just longevity over the plastic one.
I doubt there is any significant difference. I believe it was first design for Kevin who is obviously trying to squeeze ever pony out of the block possible. I plan to buy it but out of all the upgrades you can do I would think it has one of the smallest impacts on performance. I think it’s mostly for dressing up the engine bay with just a touch of performance.


Messages
246
Reactions
204
Points
37
Location
Calgary, AB, Canada
#16
I ordered one up from FenFab last week. When it comes, I’ll do datalog right before I put it and the AFE intake and then another after.

I’m really not anticipating much, but it would be nice to see if there is any improvement in airflow (#’s/min) more than anything else. Probably do a dragy comparison at the same time.


Sent from my iPhone using Tapatalk


duSTy

New Member
Messages
1
Reactions
1
Points
2
Location
San Bernardino, CA, USA
#17
Anyone here that has a 2022 with the fenfab charge pipe/ bov mind posting a pic of where you tapped in the vacuum line?


Stinger

Member
Active Duty U.S. Navy
Messages
191
Reactions
69
Points
27
Location
Madison, WI, USA
#18
What's the outside diameter of throttle body?


Messages
33
Reactions
7
Points
2
Location
St. Catharines, ON, Canada
Vehicle
21 ST
#19
Things OK at Fen Fab? Haven't received a response about a purchase request, once a week for a month....or are they just that busy?


Messages
133
Reactions
67
Points
27
Location
Utah
Vehicle
2022 Ford Explorer Platinum
#20
Things OK at Fen Fab? Haven't received a response about a purchase request, once a week for a month....or are they just that busy?
I sent an email to Brett on the 29th asking when he expected to ship and he replied later that day with "About a week. I’m finishing up a bunch of them then off to powder coating." I'm anticipating receiving mine next week if all goes to plan.
