Window Not Working - 2022

Messages
109
Reactions
53
Points
27
Location
Buffalo, NY, USA
#1
My rear passenger window will not go up after returning from a 20 min drive this afternoon. It is stuck in the down position. 2022 MY.

Anybody else have this issue and/or a quick fix? Holding the rocker switch (drivers door and rear passenger door) in either direction for 30+ seconds did not reset it. Have a dealership appt for Monday (Dave smith Ford, sup Matt716), but if this is self-fixable I’d prefer to not go in…


Sent from my iPhone using Tapatalk


Last edited:

Dale5403

1000 Post Club
Messages
1,704
Reactions
1,397
Points
262
Location
Mondovi, WI, USA
#2
Any chance you hit the rear lockout button on the drivers door? Page 96 and 97 in the owners manual.


OP
G
Messages
109
Reactions
53
Points
27
Location
Buffalo, NY, USA
Thread Starter #3
Any chance you hit the rear lockout button on the drivers door? Page 96 and 97 in the owners manual.
Great thought; I actually did check the rear lockout during my troubleshooting. The opposite rear window is working normally. I disconnected the battery for a bit as well - no luck.

The window doesn’t move from either the driver door switch nor the rear door switch, although I can hear a click at the window when either switch is pressed (however no movement). I fear this is just going to have to be a dealer fix…


Sent from my iPhone using Tapatalk


Last edited:

Dale5403

1000 Post Club
Messages
1,704
Reactions
1,397
Points
262
Location
Mondovi, WI, USA
#4
Good luck with it. I didn't find much else to help.


Messages
25
Reactions
18
Points
2
Location
New York, NY, USA
#5
I had the same issue and the dealer replaced the passenger switch. The motor was basically staying stuck in the open position and getting very hot. When I took it in and as soon as I told them about the issue, the service advisor next to the one I was working with was shaking his head almost as if others reported the same and was a known issue.


DEON770

New Member
Active Duty U.S. Army
Messages
2
Reactions
0
Points
1
Location
San Antonio
#7
OP
G
Messages
109
Reactions
53
Points
27
Location
Buffalo, NY, USA
Thread Starter #8
For this part number is this with the folding mirror button as well
I believe it is the whole unit, including the folding mirror button. Although, that conclusion is based off of a 30 second google search:



Cdubya

1000 Post Club
Messages
1,443
Reactions
700
Points
262
Location
NE Ohio
Vehicle
2020 Explorer ST
#9
Yup, that picture is it. I replaced it because the silver paint was flaking off and damn sharp! Actually, I was pretty impressed the switch module was reasonably priced. Took all of 5 minutes to install.

But before you replace it, you can reset the module in Forscan or Forscan Lite. My front window buttons and side mirror fold buttons would work (but rear windows worked) on the above module. I did a reset on the drivers window module and everything was good again.


Messages
91
Reactions
46
Points
17
Location
Kelowna, BC, Canada
#10
My rear passenger side window is stuck down now. Makes a click but is stuck.

At the dealership, the shop foreman is trying to at least get the window closed. This sucks...


Last edited:

DEON770

New Member
Active Duty U.S. Army
Messages
2
Reactions
0
Points
1
Location
San Antonio
#11
My rear passenger side window is stuck down now. Makes a click but is stuck.

At the dealership, the shop foreman is trying to at least get the window closed. This sucks...
Luckly my wife has a 2022 explorer XLT and I had to use her window switch as the dealerships here wouldn't help me unless i had an appointment that was over a week out. Hope they were able to get your window up. I also ordered the part and installed myself with no issues.


Messages
91
Reactions
46
Points
17
Location
Kelowna, BC, Canada
#12
I brought it to the dealer and they went and robbed a switch from a new one off the lot. I went to their drive-in service department and one of the shop foremen changed it out. I'm pretty happy that the dealer did that for me.


FASTLES48

New Member
U.S. Coast Guard Veteran
Messages
1
Reactions
7
Points
2
Location
Healdsburg, CA
Vehicle
2022 Explorer ST
#13
I wanted to write a DIY fix for this issue. It sounds somewhat common, and when I had this happen, the only solution was the replace the switch (still the best solution, but I’d like to show what I did to solve it, before a new switch arrived).

Very short back story. This happened on my wife’s ST on a Thursday night. The dealership (25 miles away) had my 2022 Raptor in for service, so, with this issue, if we needed to drive any distance, it would cause a problem. On top of that, we have an 8 week old baby. So, I felt at a disadvantage with only having one car, and that one car having a busted window. My truck was going to be ready the next day, and I would pick up a new switch at the dealer. I bagged and taped the window on the ST, confirmed the dealer had the driver switch in stock, and I’d handle it tomorrow. Friday comes and goes, truck isn't ready. So, Saturday morning I call and find out this new dealership closes their service, and their parts department fully on the weekends (That's new for me. Parts and Service were both always open on Saturdays at my old dealership). So, we are now stuck until Monday with no truck, and an ST with a window down for 2+ more days.

I read the others saying the problem was linked to the driver door switch module. I had relay clicking when going up/down on any window switch other than DOWN on the rear passenger window. So, figured it was the main switch in the drivers door like every said, and not the door switch itself.

The driver door switches pop off with just a couple clips. Tried cleaning out the connectors. No joy.

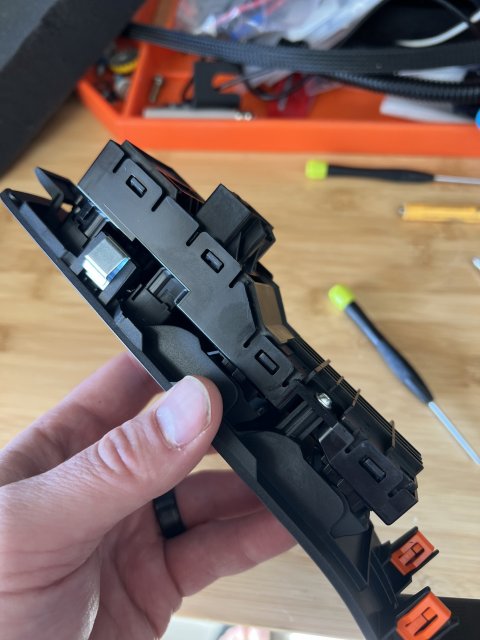

Popped apart the switch back to see how it worked. I used a series of flathead screwdrivers to pry and hold each clip to get the rear cover off that had the plug connector on it.

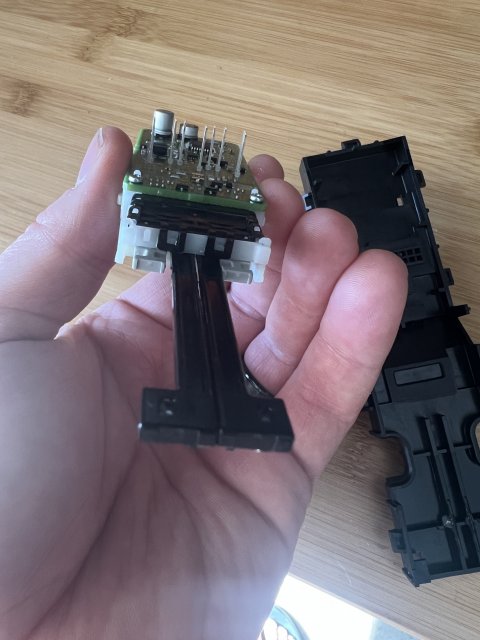

The rear window switches are controlled by longer black arms, and the front switches by the gray shorter arms. When you toggle a switch, it pulls those arms in, then releases them. This is the mechanical operation of the switches. The next part goes over how the switch turns those mechanical operations into electrical ones.
IMG_6379 2.JPG

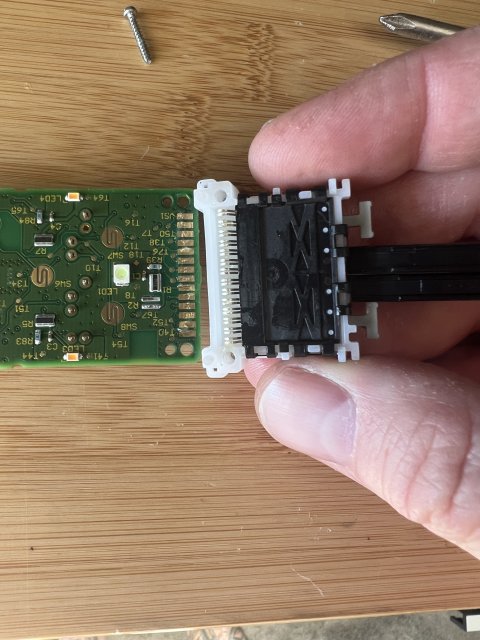

I took apart the white box (w/ black bottom) that was housing the mechanical mechanism that was being actuated by the switch movement. It's held onto the circuit boar by 2 Phillips screws.

Exploded view once you open the box:

The long black arms were rolling over small little white plastic levers (Seen above, they look like the mechanism behind piano keys) that had a small amount of tension on them. When you move the window "open" or "closed" via a switch, it puts the white plastic piano looking levers into a detent on whichever arm is being moved by the switch (long black, short gray, etc), which then makes the white plastic levers push down on a metal connector that sits below it. That movement makes it touch, or not touch, the circuit board contacts, telling it to "open" or "close" the window. That’s the basic function. (I have a small amount of circuitry board knowledge, but a large amount of mechanical knowledge. So, sorry if that was confusing).

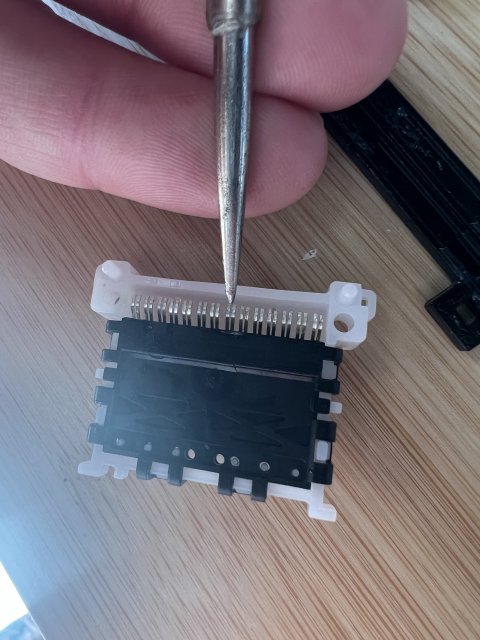

I found the white plastic lever, and accompanying metal connector that operates the rear passenger window. Pointing here (if your bad window is a different window, just follow which levers are being pushed down when you rock back and fourth the appropriate black or gray arm:

The associated metal connector that the lever pushes down:

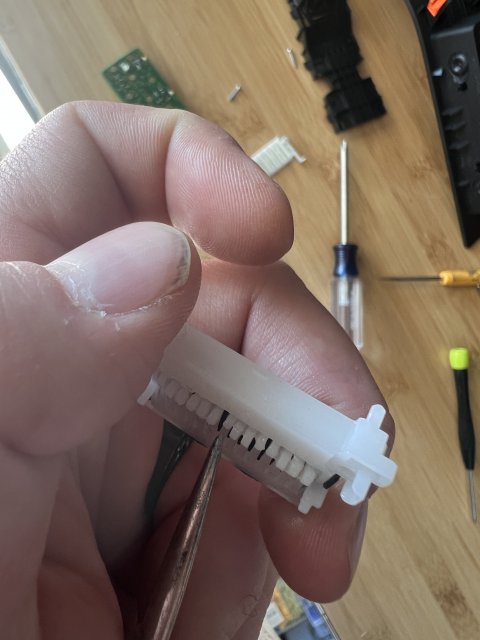

The white lever for the rear passenger window was clearly pushed over to one side, and slightly down:

This meant the metal connector underneath it was in constant contact with the plate on the circuit board. Hence why every other window operation would make a relay noise (being told to open or close) and this one wouldn’t, because it was in constant contact with the circuit board telling it that it's "constantly pressing the window down switch". It even had a little darker mark on the circuit board contact, and the bottom side of the metal connector was brown tinged. So, I scraped off any burned looking material gently on both the metal connector, and circuit board, spread the di-electric grease evenly along the boards, and proceeded to bend back the white lever straight.

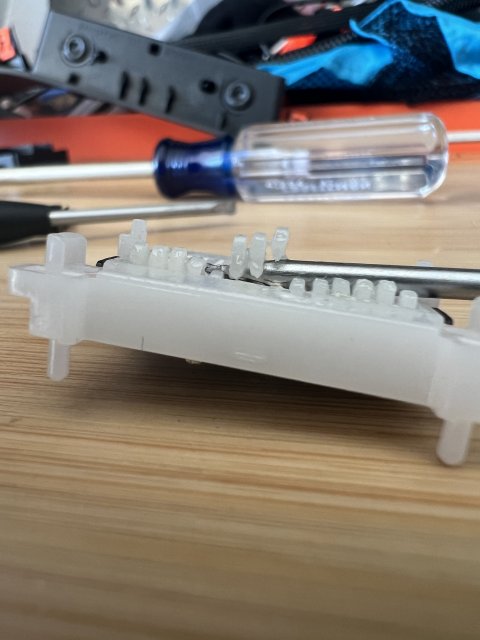

But, it had too much tension down still, and wanted to make the connector still be pushed down, even at the standard position. So, I propped it up, and clipped off about 1-2mm of the white lever. This gave some breathing room to the metal connector underneath it. You can see that here. The farthest right white lever that's propped up is cut shorter:

Once I did that, I put the box back together, slid the arms into their places, and screwed it back onto the circuit board.

I checked operation a few times before reinstalling it all back together w/ the actual switch. But we were good to go! The passenger rear window rolls up and down just fine!


This isn’t the end all solution. But, got the window working again, and I have a switch on the way and didn’t have to go to the dealership. And they were closed for two more days anyway. All in all, with the diagnosing, this took about an hour. Hopefully if you see this and have a window that just stopped working one day (likely in the down position) and hear relay clicking everywhere, you can use this to help solve it and get the window back up. I only had to cut the white lever because it kept wanting to contact the metal connectors. It was just too far depressed even after I tried to gently bend it back. So, exercise some caution when bending those white looking levers, and also if you have to cut the one that's an issue.


I hope this helps anyone else stuck in this situation! Just take your time and it’s all pretty easy!


Messages
33
Reactions
10
Points
2
Location
Northern Indiana
Vehicle
2023 Explorer ST
#14
I had this exact issue today. Passenger rear window went down and wouldn't raise. The driver switch for that window caused a click when pushing it up but not down. I replaced the switch assembly on the driver door and it worked just fine. My dealer couldn't get me in till Thursday, $40 for the switch was well worth it. We have right at 3k miles on the Explorer, this was a disappointment...
